System Gabion Retaining Walls And Bridge Abutments Gabion Basket Box
Product Description
| Gabion Size(m) | Mesh Model |
| | 8x10 | 6x8 |
| Length | Width | Height | PVC coated | PVC coated |
| | Mesh wire diameter | Gal. weight | Mesh wire diameter | Gal. weight |
| 2m | 1m | 1m | 2.7mm | >245g/m2 | 2.0mm | >215g/m2 |
| 3m | 1m | 1m | Selvedge wire diameter | Gal. weight | Selvedge wire diameter | Gal. weight |
| 4m | 1m | 1m | 3.4mm | >265g/m2 | 2.7mm | >245g/m2 |
| 6m | 1m | 1m | Lacing wire 2.7mm | Lacing wire 2.0mm |
.
Specification
1. Gabion box mesh materials: Hot dipped galvanized, galfan coated and PVC coated gabion box
2. Gabion box mesh wire: 2.0mm, 2.4mm, 2.7mm, 3.2mm, 3.4mm, 4mm
3. Gabion box mesh selvedge wire diameter: 2.4mm, 2.7mm, 3mm, 3.4mm, 4mm
4. Gabion box mesh Tie wire/lacing wire: 2.2mm, 3%, 5%, 8% of weight
5. Gabion box mesh hole: 6*8cm(mesh type6), 8*10cm(mesh type8), 10*12cm(mesh type10), 12*15cm(mesh type12)
6. Gabion box mesh Zinc coating: 220-290G/M2
7. Gabion box mesh size: 2x1x1m, 2x1x0.5m, 6x2x0.3m, as your request
8. Gabion box mesh with diaphragms
A double-twisted wire mesh container of variable sizes, uniformly partitioned into internal cells,interconnected with other similar units, and filled wih stone at the project size to form flexible ,permeable, monolithic structures such as retaining walls, sea wall,channel linings,revetments,and weirs for erosion control projects.
A double-twisted wire mesh container uniformly partitioned into internal cells with relatively small height in relation to other dimensions,having smaller mesh openings than the mesh used for gabions;
gabion mattresses are generally used for riverbank protection and channel linings.
Feature
(1) Economic. Just fill the stone into the gabions and seal it.
(2) Simple installation. No special technology needed.
(3) Weather proof under natural destroy, corrosion resistant.
(4) No collapse even under big scope of deforming.
(5) Sludge in the stones is good for plant growing. Mixed to form a integrity with the natural environment.
(6) Good permeation can prevent the damage by hydrostatic.
(7) Less transport freight. It can be folded together for transport and further installation.
Advantages
| 1. Robust and flexible structure. |
| 2. Excellent permeability. |
| 3. Good corrosion and rust resistance. |
| 4. High tensile strength. |
| 5. Good durability and long lifespan. |
Application
Gabion wall cages with its good corrosion resistance and oxidation resistance, serves well as strengthening,protection and temperature keeping materials in the form of mesh container, stone cage, isolation wall, boiler cover or poultry fence in construction, petroleum, chemical, breeding, garden and food processing industries.

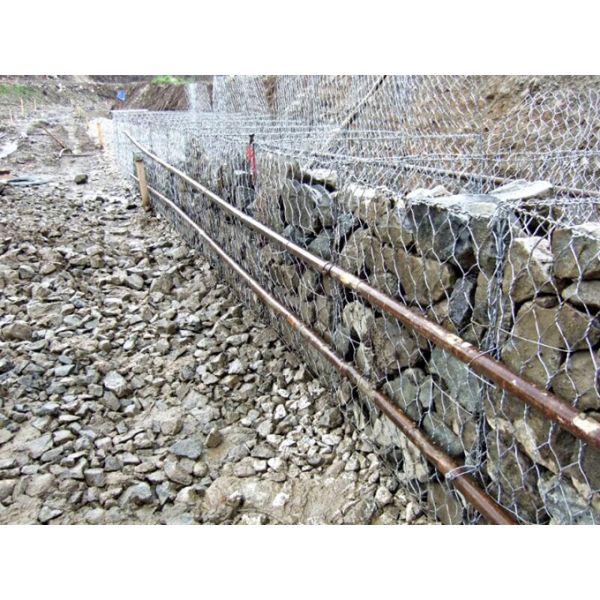

Wire gabion boxes are used for various bank stabilization applications including water course training, bank scour protection, earth retention structures and architectural components.
Packing
1.nude package
2.Several pieces of gabions to a pallet,pallets put into containers.
3.70pieces to a bundle, 24-26Tons to a 40HQ
shipping:
within 20days/3*40ft containers
